Part #10496 Stainless Steel Mandrel

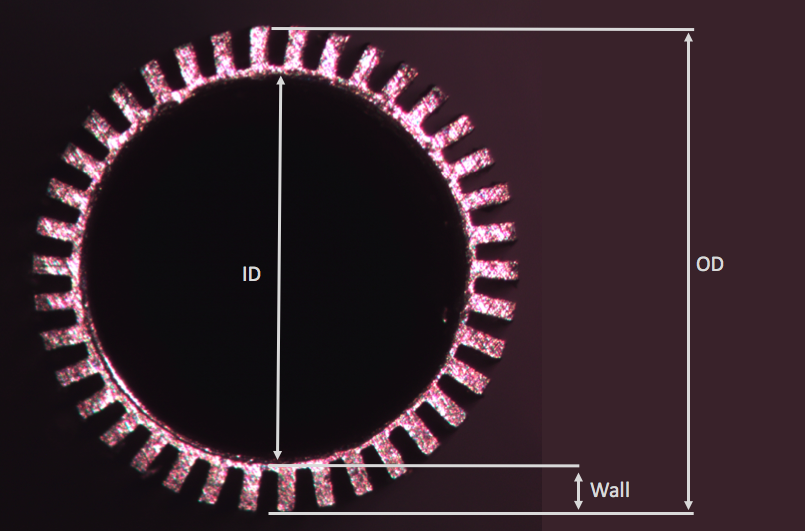

304 stainless steel, 2.77 mm OD, 0.81 mm Wall thickness



304 Stainless Steel

2.77 mm

±0.05 mm

0.81 mm

1.96 mm

12

10.0 mm

254.0 mm

Material

OD

OD Tolerence

Wall Thickness

ID

Gauge

Land Length

Overall Length

Please contact us for pricing information.

Name *
Name

*Please note that this technology is patented and a royalty bearing commercial license is required to produce commercial product with these micro surfaces. The price above includes the royalty charge for the life of the mandrel. A license is not given for others to reproduce the mandrel or the micro surface design.

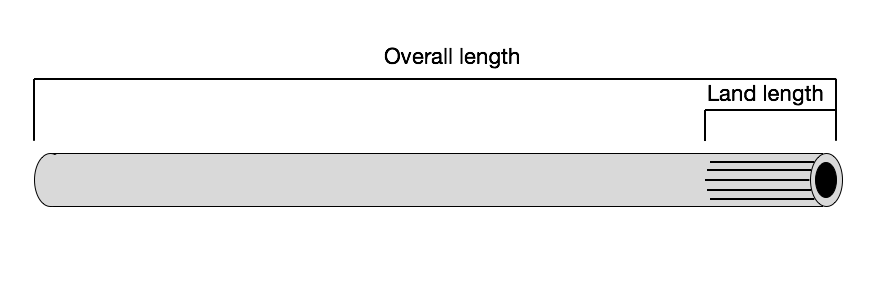

Screen Shot 2017-12-04 at 12.02.47 PM.png
